Radial Forging Machine GFM SX-13 (RV832)
Manufacturer
GFM, AUSTRIA
Type
SX-13
Year
1979

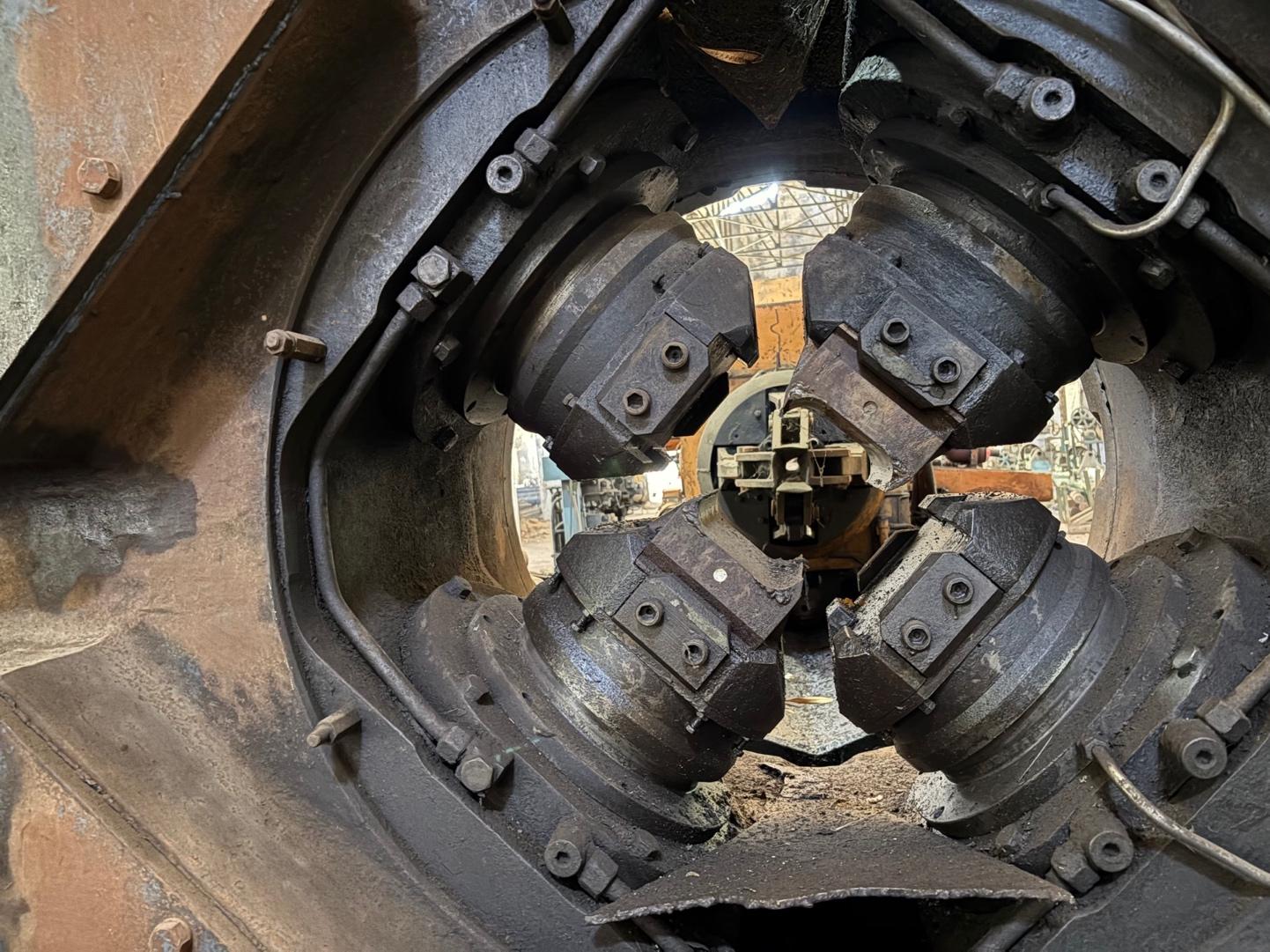

No. Of Hammers
4
Force per Hammer
1.600 kN (160 MT)
Number of strokes per minute
approx. 620
Length of the hammer
270 mm (10.63″)
Hammer adjustment
max. 80 mm (3.15″)
Max. starting size
round 130 mm (5.12″) or square 115 mm (4.53″)
Min. finish size
round 26 mm (1.02″) or square 24 mm (.94″)
Max. thickness/width ratio
1 : 5.5
Max. product width
110 mm (4.33″)
Max. piece length
4.000 mm (13′ 1.5″)

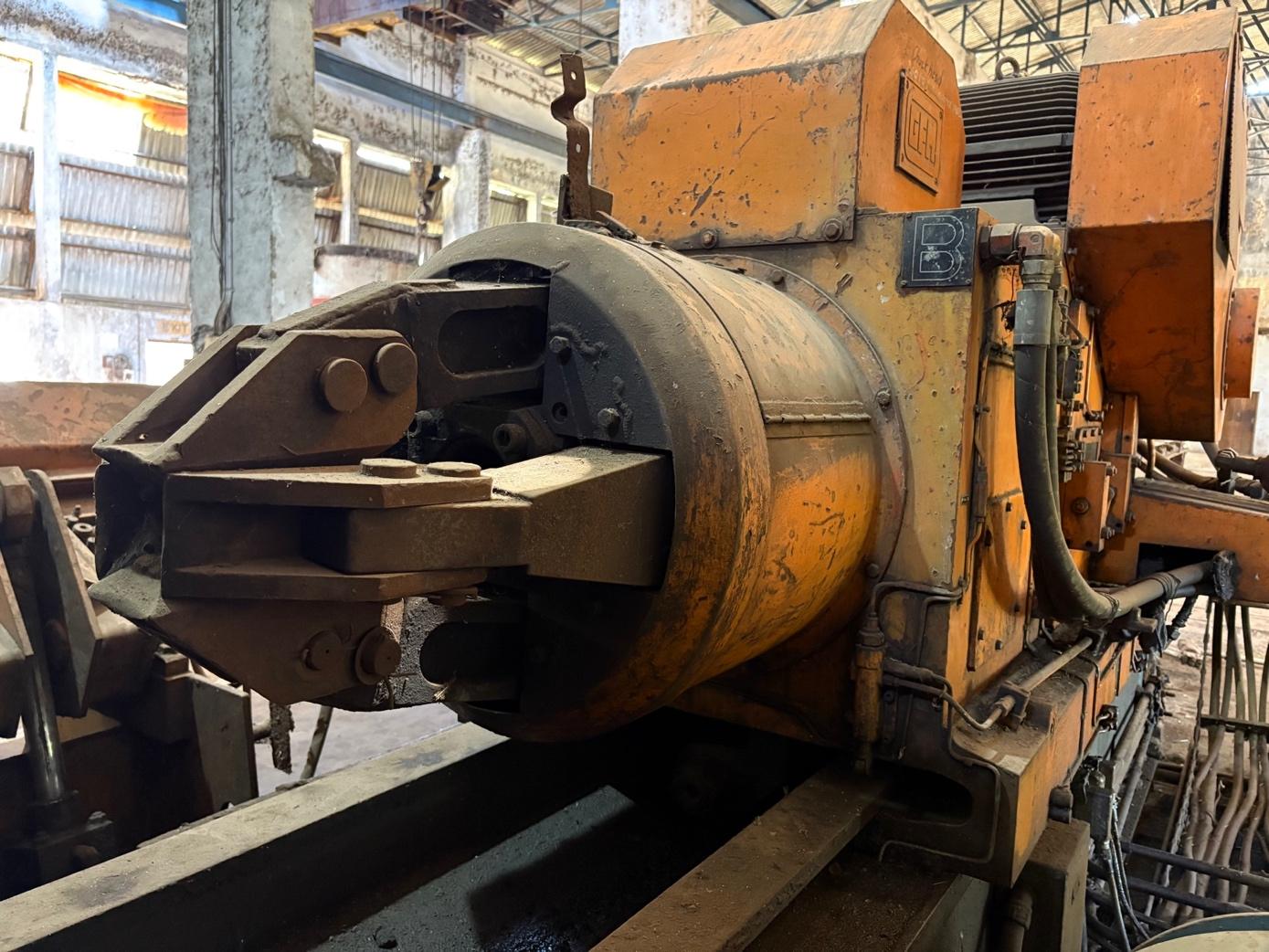

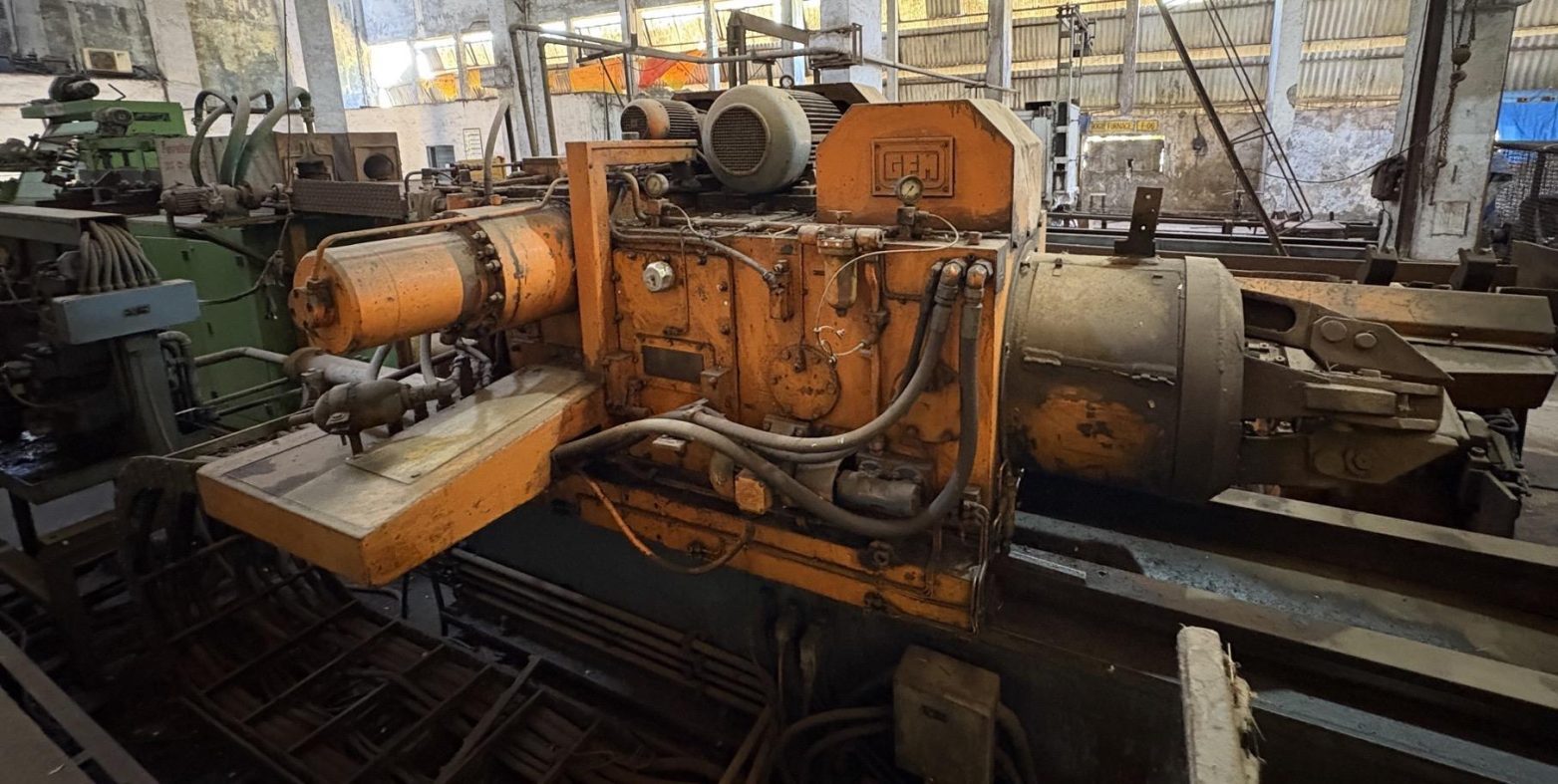

Max. diam. in the Manipulator
130 mm (5.12″)
Manipulator torque force
3 kN (674 lb. force)

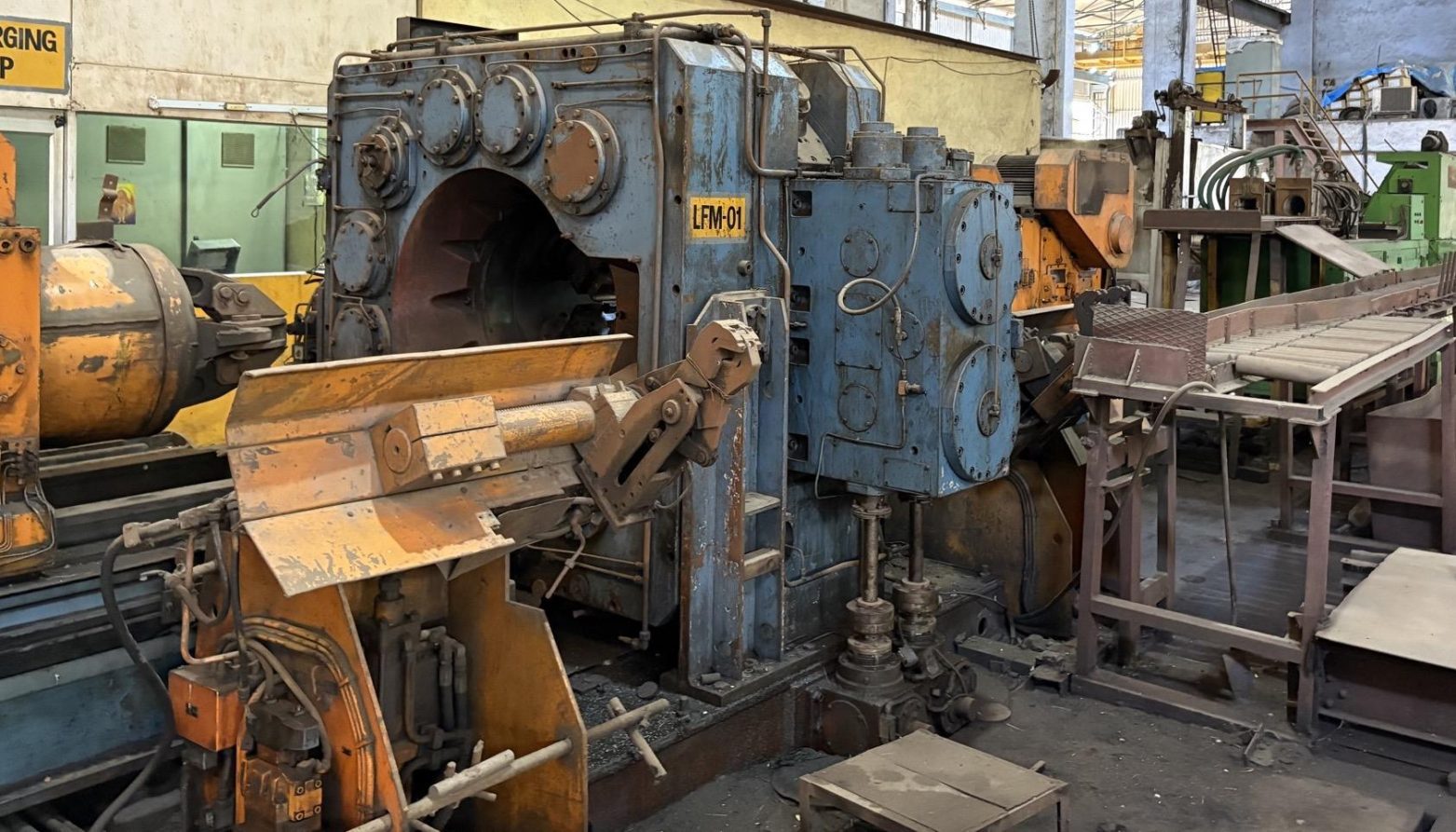

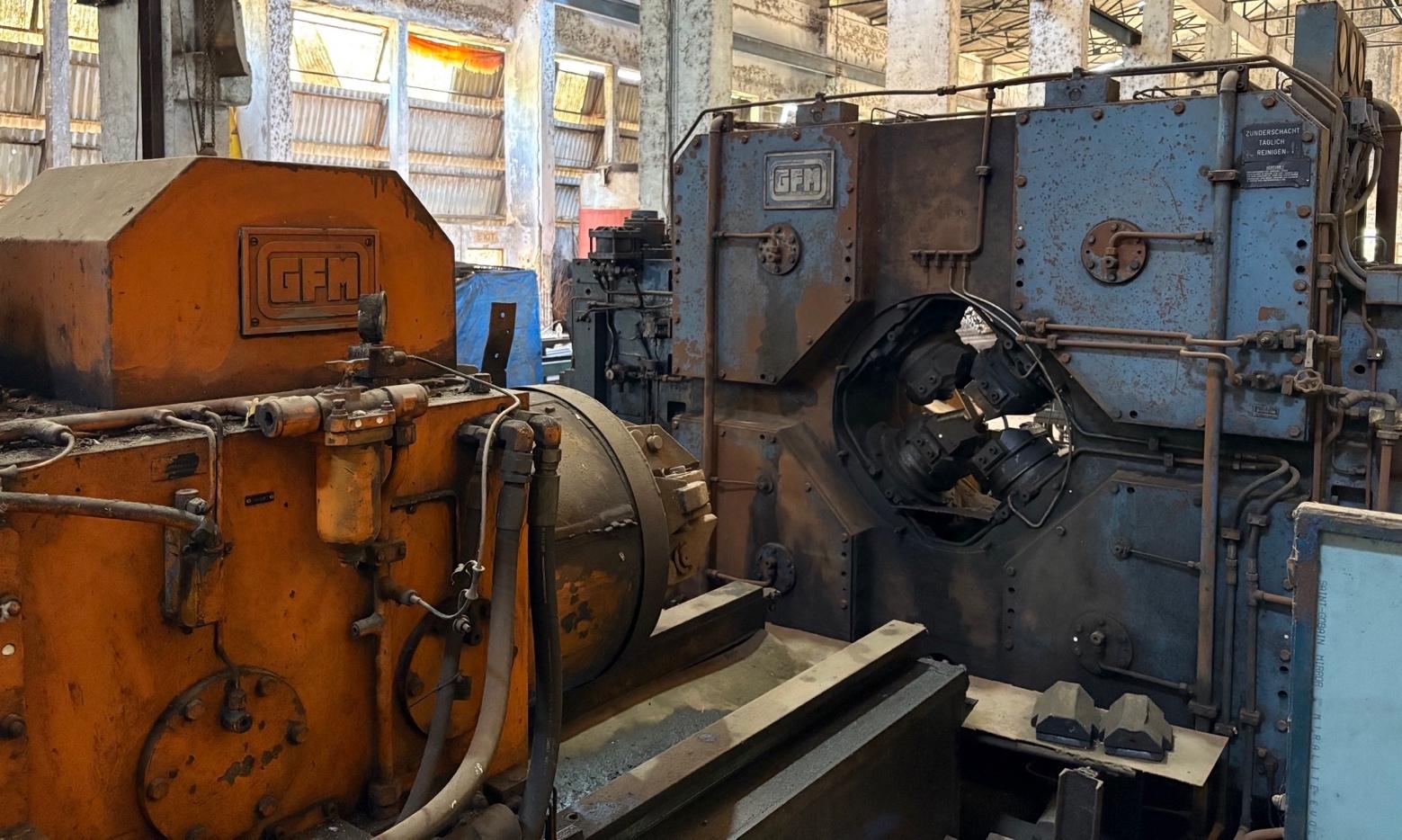

Line composed of
Forging Machine SX-13
2 (two) Manipulators with Beds
Loading / Unloading Devices
Electrics with Controls and Pulpits
Hydraulics and Pneumatics
Induction Heater
Available spares and tooling
Available documentation
