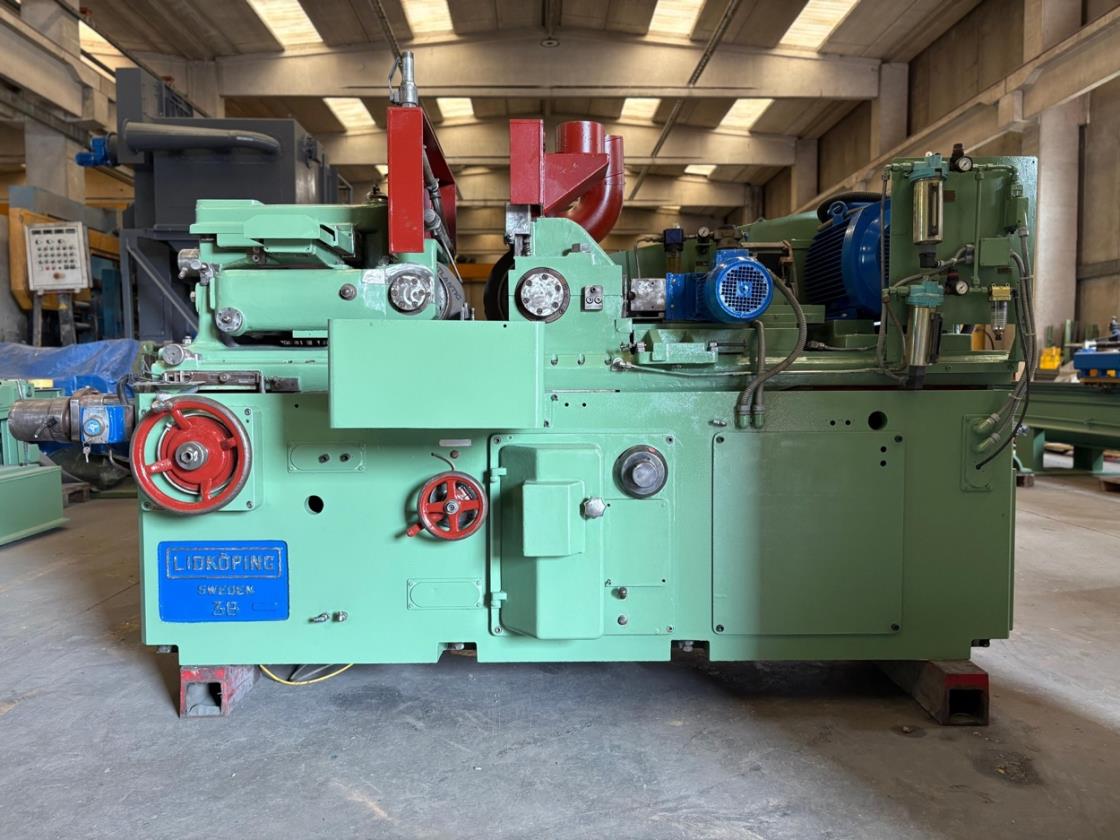

LIDKOPING

3B

Recommended: Ø 2,5 ÷ Ø 50mm, Possible: Ø 0,5 – 125 mm Max. opening between wheels 125 mm (L 100 – 7500mm)

New

Outer diameter, new wheel: 406 mm Wheel can be used until diameter is reduced to: 290 mm Standard width: 203 mm Max. width with recessed wheels: 254 mm Bore (as standard with peripheral speed 30 m/s = 6000 ft/min): 229 mm Peripheral speed (standard 30 m/s = 6000 ft/min): 27–33 m/s (5300–6500 ft/min) (extra 45 m/s = 9000 ft/min): 41–49 m/s (8000–9600 ft/min); (extra 60 m/s = 12000 ft/min): 52–60 m/s (10200–11800 ft/min)

Outer diameter, new wheel: 280 mm Wheel can be used until diameter is reduced to: 217 mm Standard width: 203 mm Max. width with recessed wheels: 254 mm Bore: 165 mm Speed – standard worm gear (infinitely variable): 0–120 r/min Speed – Hypoid gear, attachment 110 (infinitely variable): 300 r/min

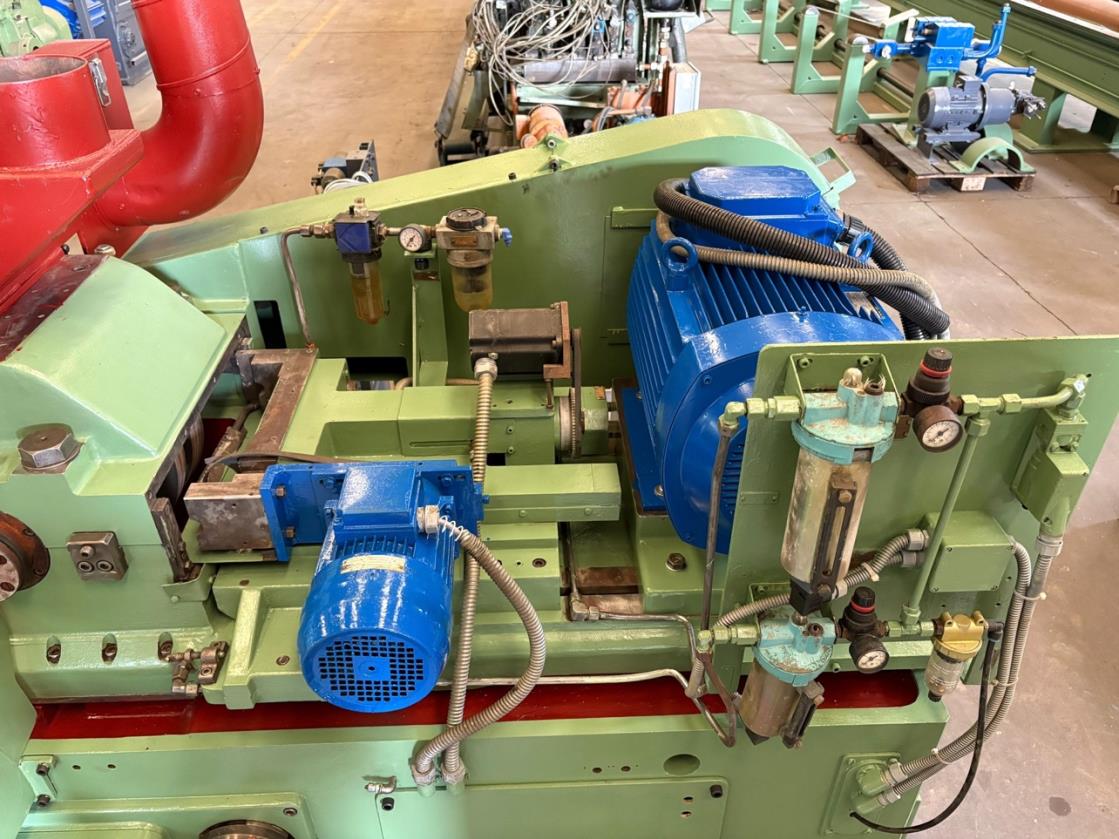

Main motor, max: 22 kW
Total power requirements: 25 kW

Height from floor to centre of spindles: 1060 mm
Floor space required for body of machine: 3600×3400 mm (11\\\’10\\\”×11\\\’1\\\”)
Total Weight: 5500 kg
