Drawing Machines / Draw Bench
Drawing & Straightening line Samuel Platt 20ton
Manufacturer
Samuel Platt Ltd
Type
DS 20 ton
Working range
Ø50.8mm (2’’) | 45kg/mm2
Bar Lenght
8m
Line composed of

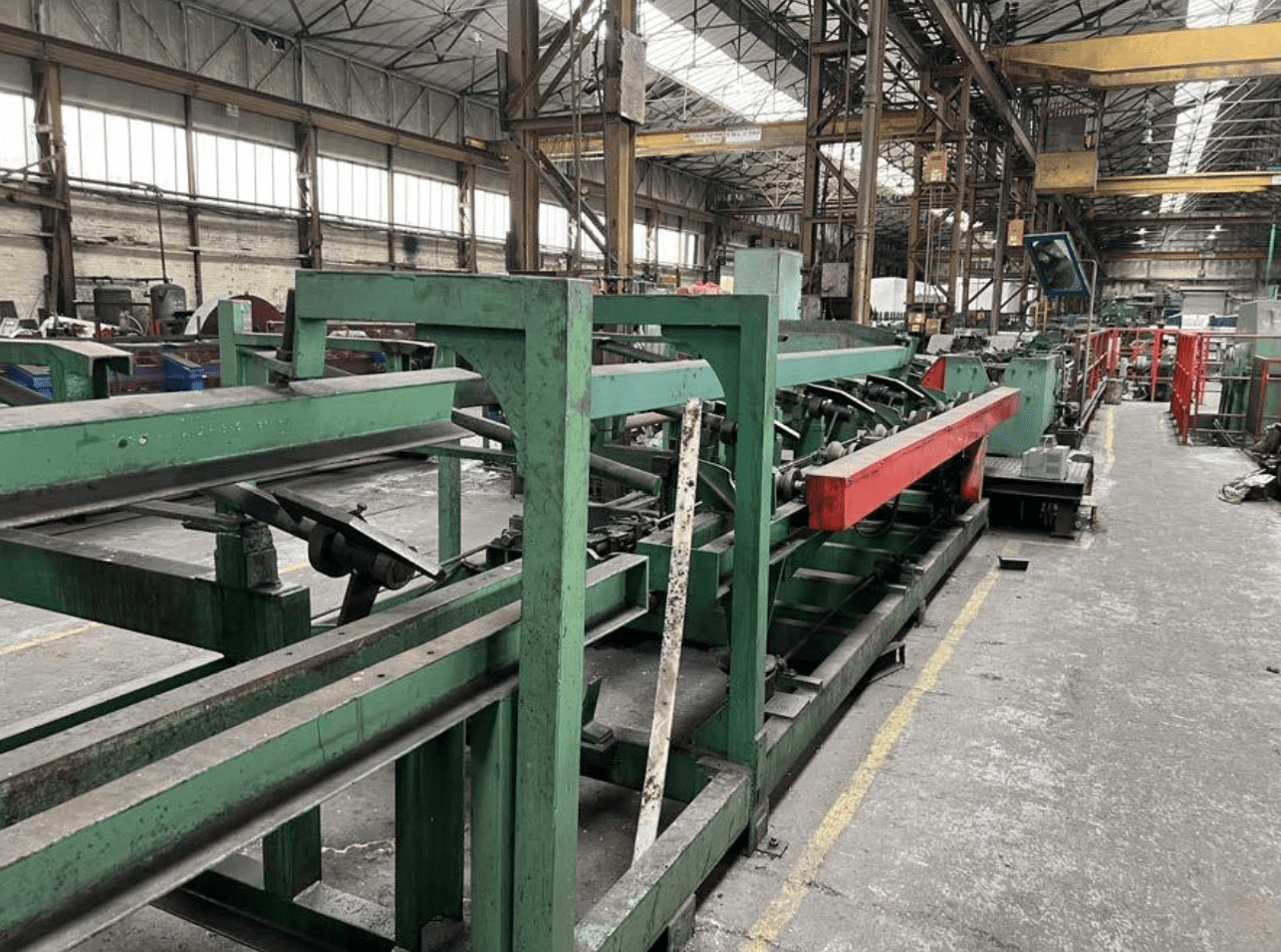

Bar Storage Rack

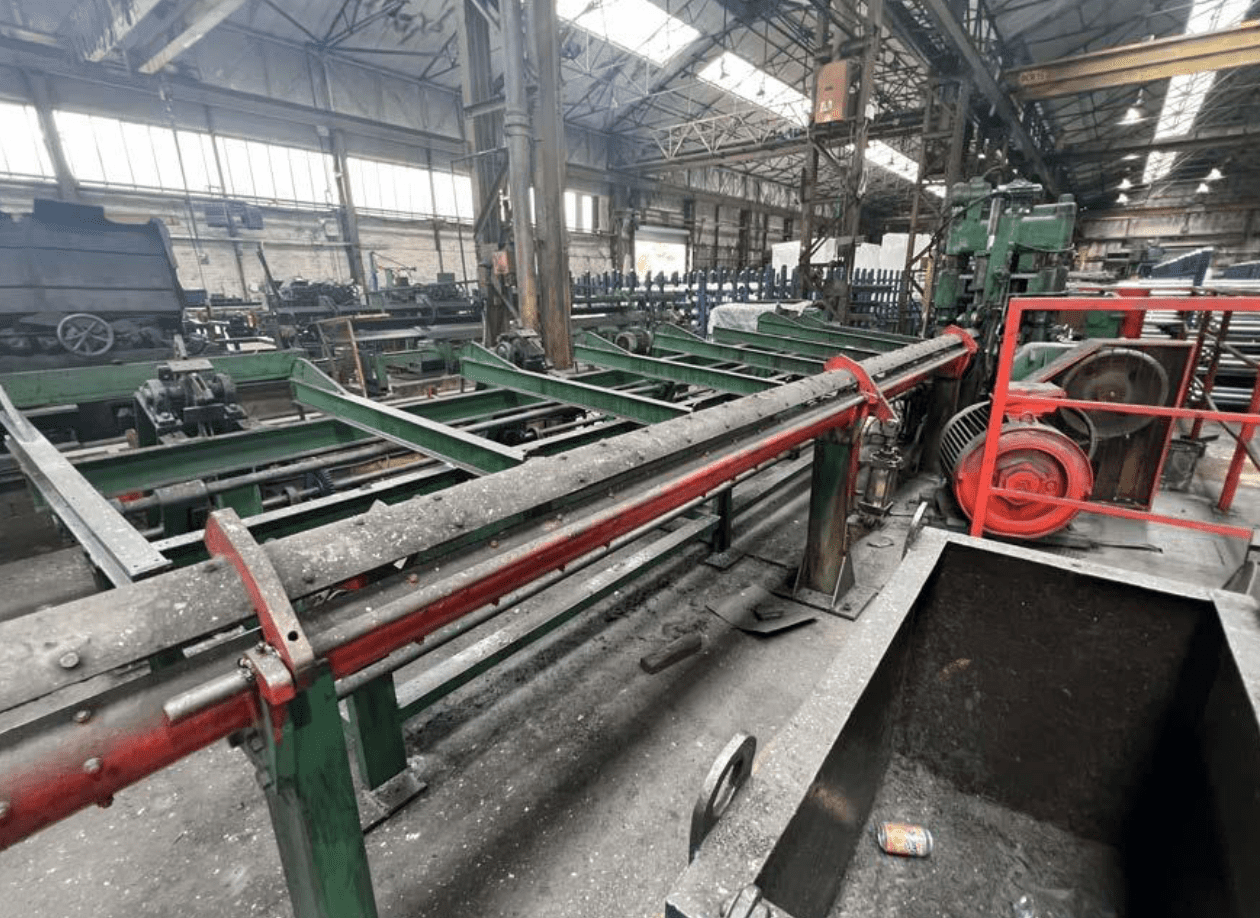

Inclined Loading Table
Entry Roller Table
Push Pointer (force: 40 ton)
Die Head

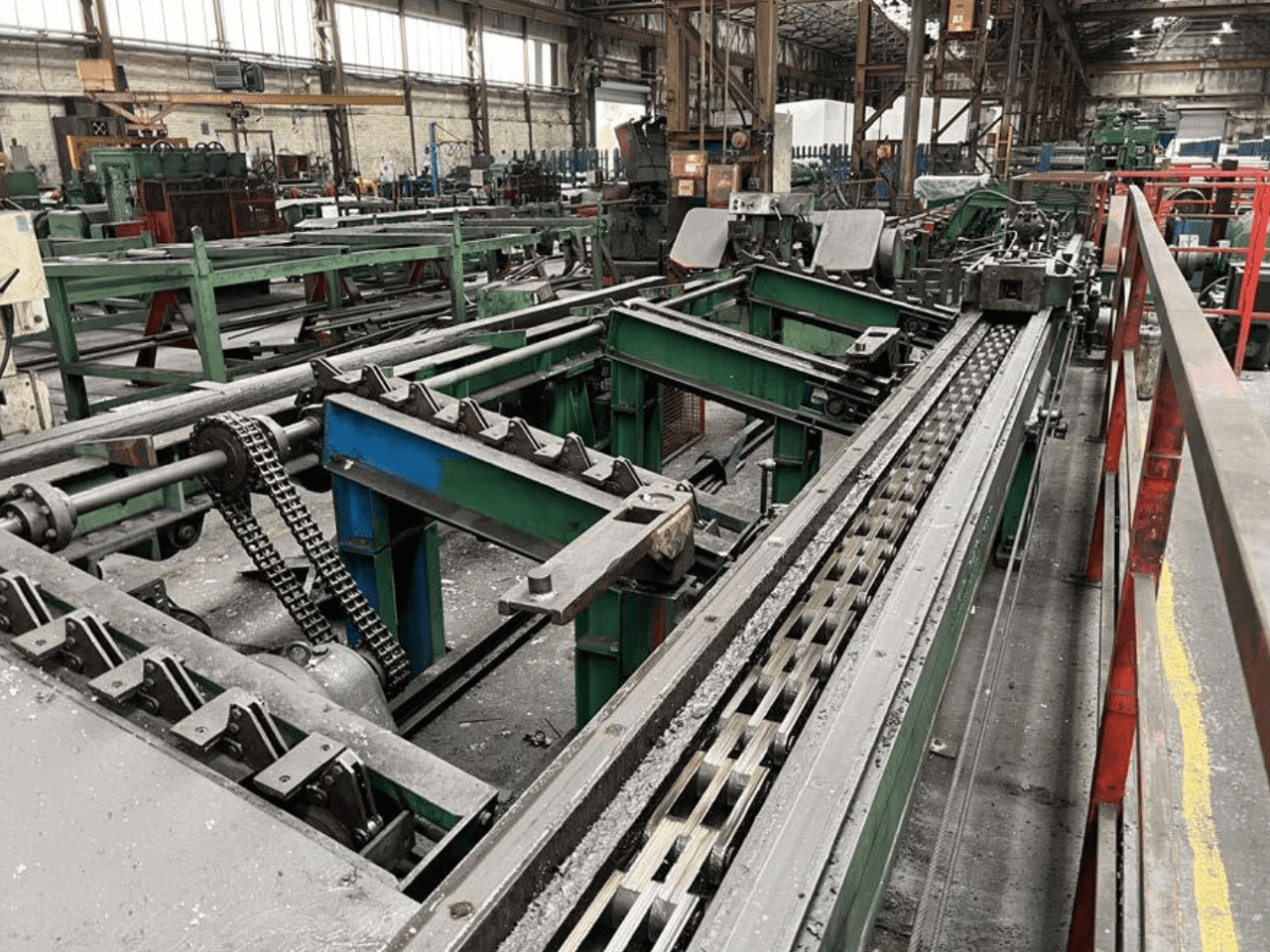

Drawing Bench

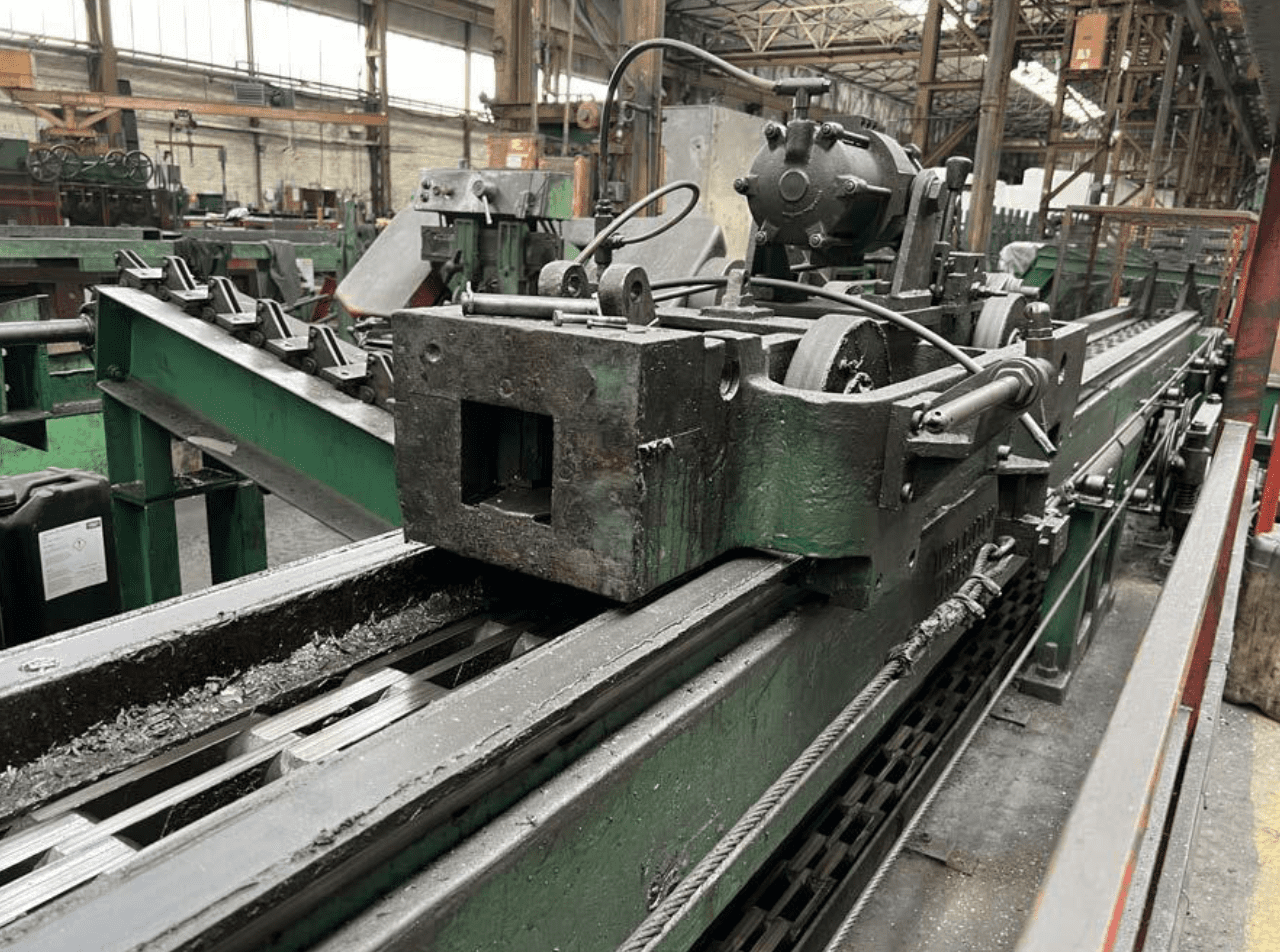

Drawing Carriage
Main Drive Motor

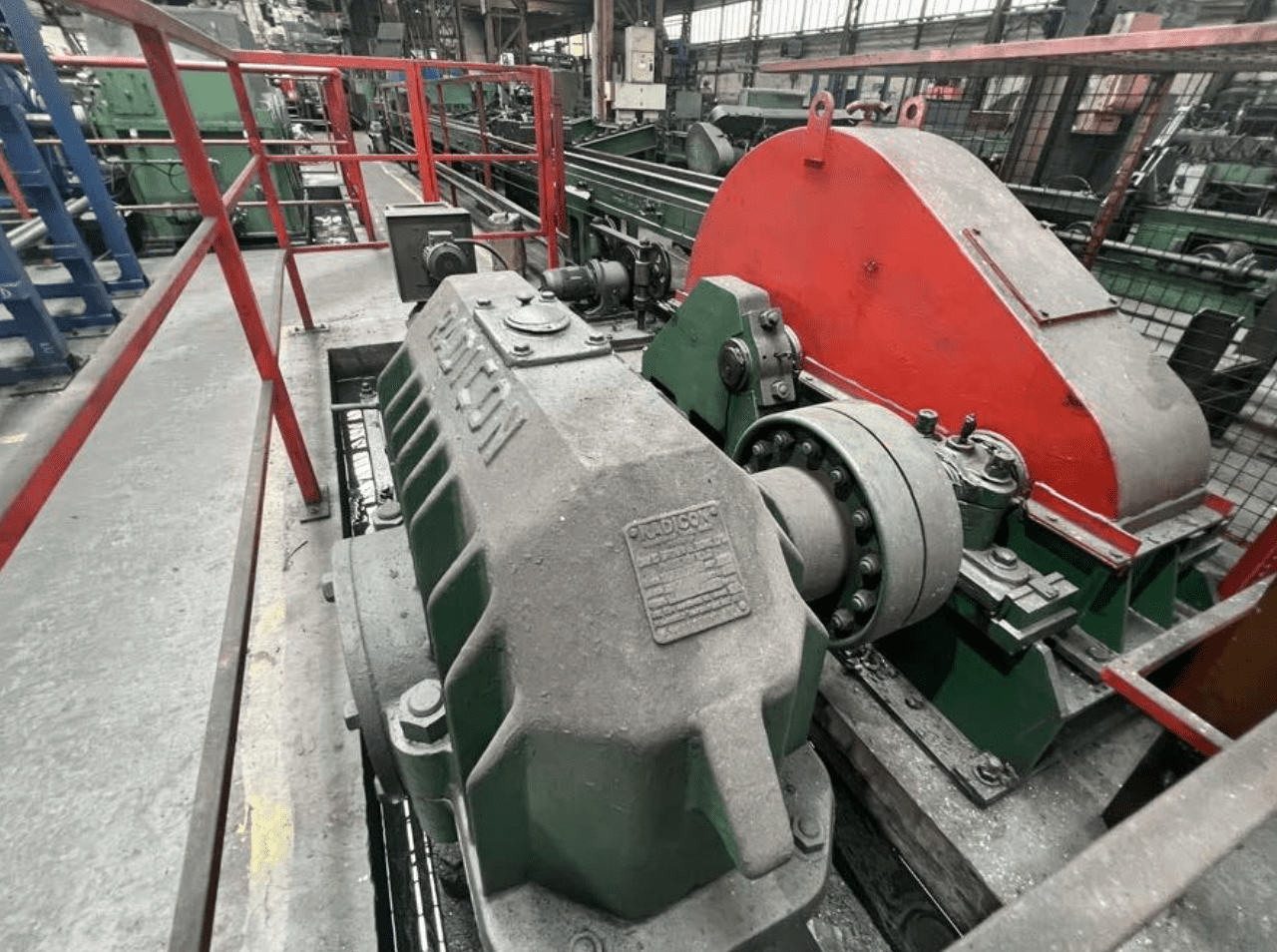

Gearbox
Bar Ejection to Inclined Transfer Table
Lubrication System
Hydraulic Power Pack
Electrical Controls
Tooling – Drawing Dies and Grippers

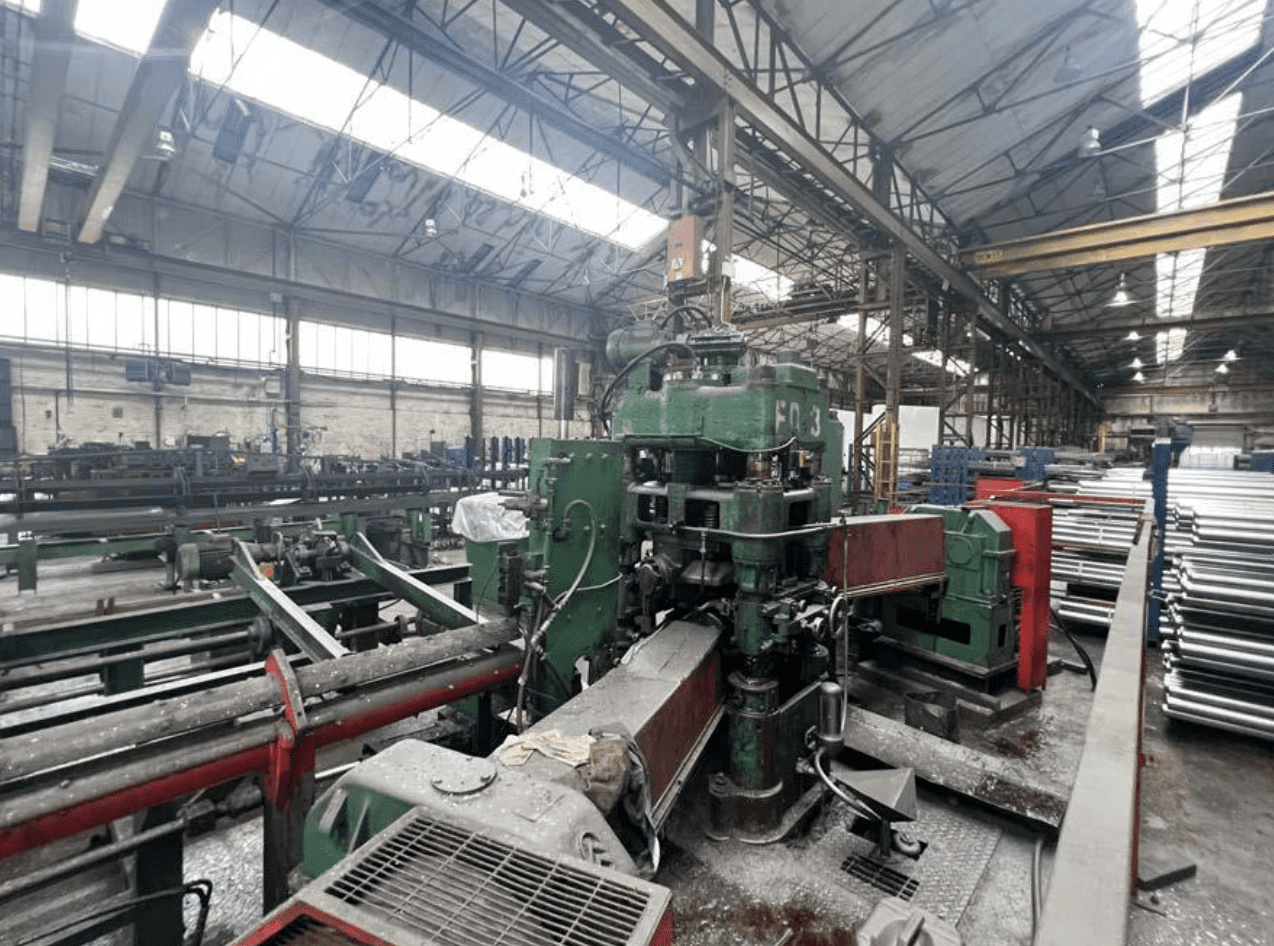

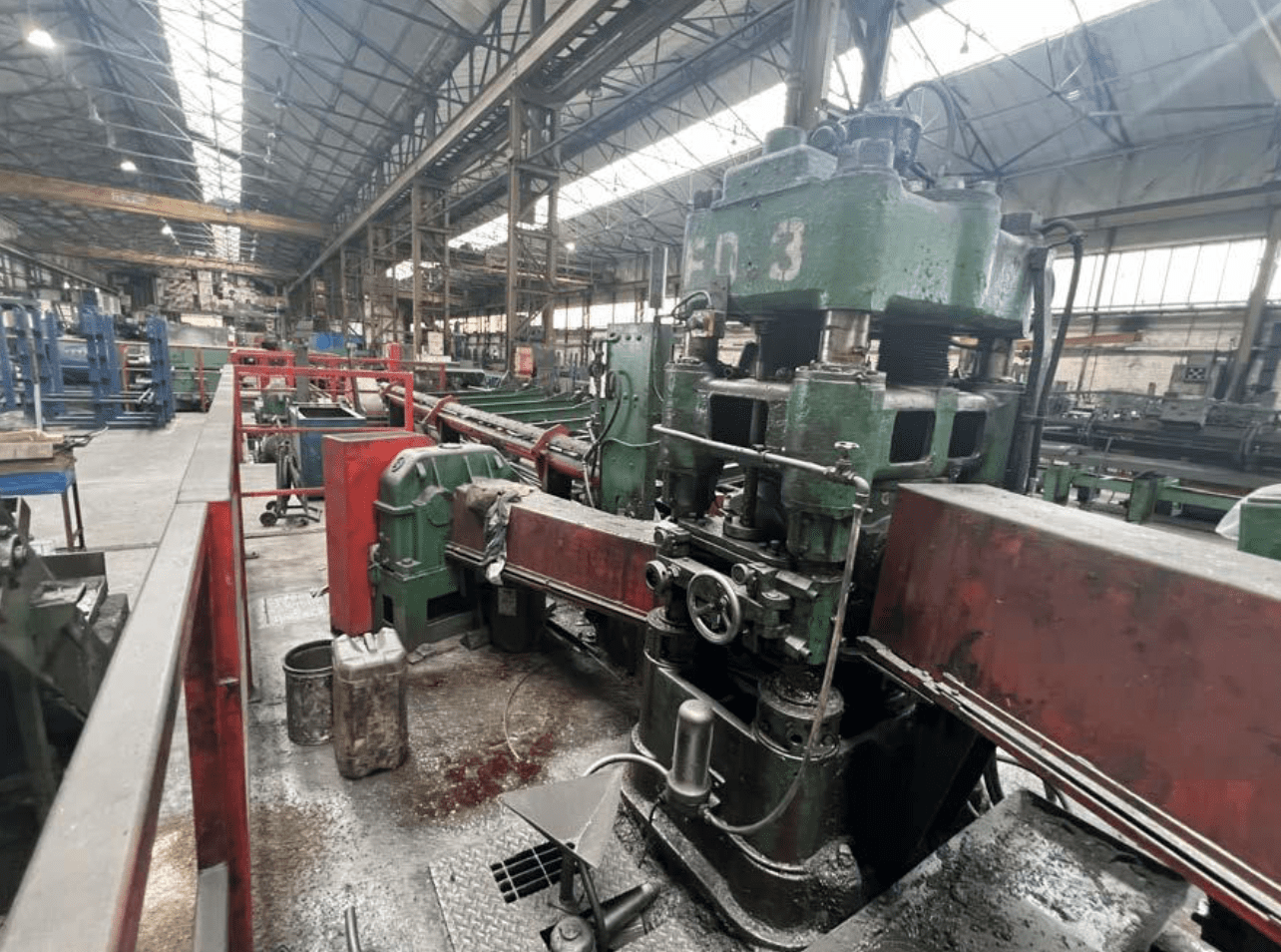

2-Roll Vertical STRAIGHTENER (MONTBARD VBM 75) Ø16 – 75mm
Straightener Bar Storage Rack
Entry Trough, Pneumatic Lid, Pinch Roll Unit
Motorized Adjustment, Two (2) Motor/Gearboxes
Exit Pinch Roll, Exit Trough
Hydraulic Power Pack, Electrical Controls, Lubrication System
