Drawing Machines / Draw Bench
Draw bench Samuel Platt 40 ton, Straightening Bronx & Sawing Line
Manufacturer
Samuel Platt ltd
Type
CS 40 Tons
Working range
Ø76.2mm (3’’) | 45kg/mm2
Line composed of
Push Pointer
Die Head
Drawing Bench
Drawing Carriage

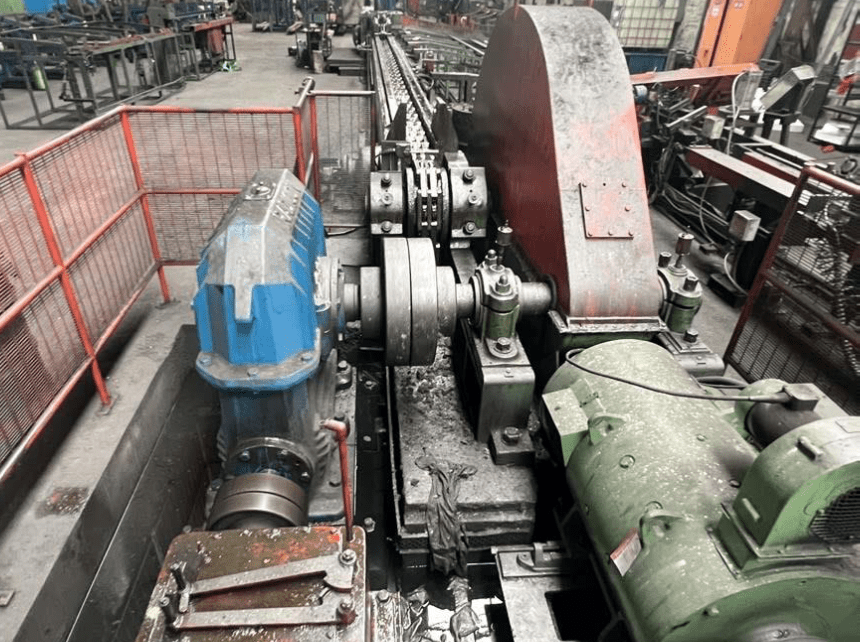

Main Drive Motor
Gearbox
Rotating Bar Support & Ejection Arms (Pneumatically Operated)
Transfer/Holding Table to Saw
Lubrication System
Hydraulic Power Pack
Electrical Controls
Tooling – Drawing Dies and Grippers

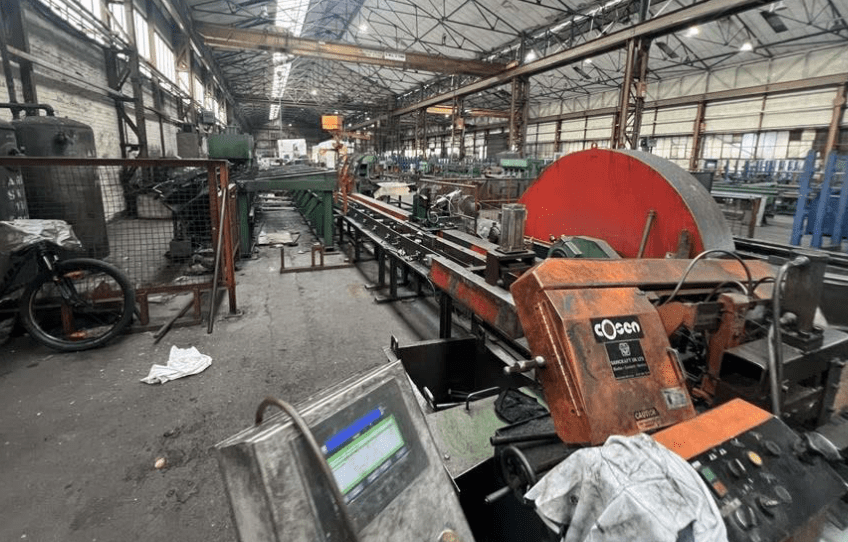

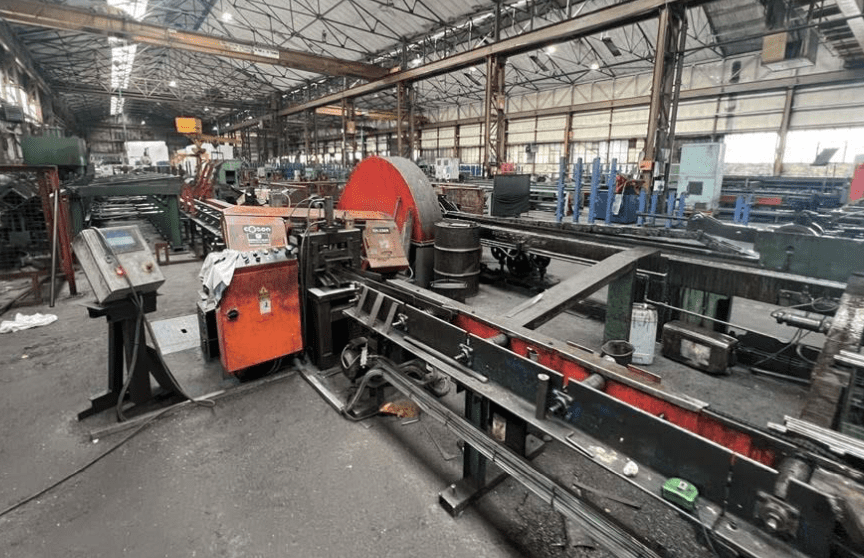

SAW Cosen SH-250R
2 Roll STRAIGHTENER (BRONX PBRV-5)
Transfer Loading Table and unscrambler
Entry Trough
Pneumatically Operated Lid
Pusher Type
Straightener
Motorized Adjustment
Guide Blade Gate
Exit Trough
Inclined Bar Ejection to Chamfering Machine
Roller Table
Collection Pocket Table
Dual Pockets, Lubrication System
Request information
